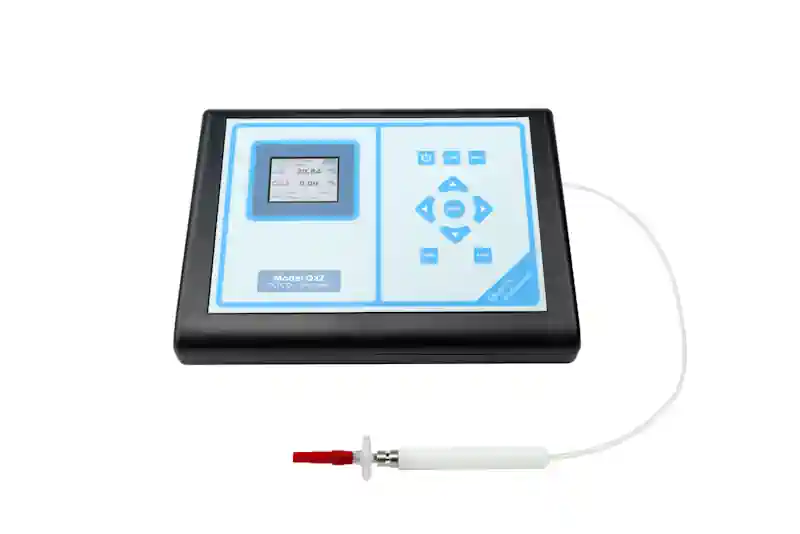

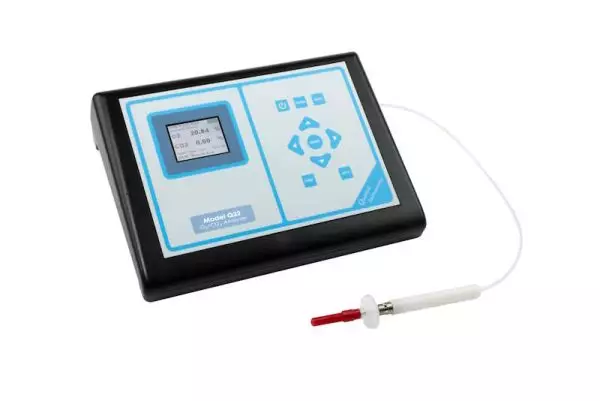

Q32 Benchtop O2 / CO2 Analyzer
The Quantek Model Q32 is our next generation benchtop O2 / CO2 analyzer. Use it for MAP (modified atmosphere package) testing, along with many other types of applications.
This microprocessor-controlled instrument features onboard data collection, a hold function (the reading freezes on the screen when the test is complete), a 12-hour internal battery, a TFT full color screen, and EasyCal calibration using the touchpad.
Readings can be exported to a USB thumbdrive (included) as a CSV file for further processing. The Q32 comes with a battery pack, internal pump, carry case, and accessories.
Lead Time: 3-6 business days
$3,500.00
All prices are shown in USD.
Q32 Benchtop O2 / CO2 Analyzer
The Quantek Model Q32 is our next generation benchtop O2 / CO2 analyzer. Use it for MAP (modified atmosphere package) testing, along with many other types of applications.
This microprocessor-controlled instrument features onboard data collection, a hold function (the reading freezes on the screen when the test is complete), a 12-hour internal battery, a TFT full color screen, and EasyCal calibration using the touchpad.
Readings can be exported to a USB thumbdrive (included) as a CSV file for further processing. The Q32 comes with a battery pack, internal pump, carry case, and accessories.
Lead Time: 3-6 business days
NEXT GENERATION TECHNOLOGY
Introducing the Q32, the next generation of Quantek analyzers. This analyzer utilizes the latest in microprocessor-based sampling, and comes equipped with an advanced TFT display, smart charging, onboard data collection, advanced pump functions, and EasyCal calibration controls.LONG LIFE, STABLE SENSORS
The Model Q32 incorporates the latest fast response O2 and CO2 sensors, which allows results to be obtained in 15-25 seconds for rapid spot checks. The oxygen sensor is rated for 5 years of life, which is far better than the competition. Other analyzers utilize cheap oxygen sensors which may last 18-24 months.EASY SAMPLING METHOD
The sample probe connects to a barbed inlet fitting that is attached to the analyzer. Extra probe tubing is included with each analyzer for easy exchange in case of contamination or damage. The probe is tipped with a liquid blocking filter and tri-beveled, non-coring needle. The filter will block liquid and particle intake into the analyzer, and the needle is specially designed to prevent plugging.USER FRIENDLY, ACCESSIBLE CONTROLS
Navigate the user-friendly interface, and you can adjust the oxygen calibration, pump time, CO2 calibration, and other parameters on the fly. There’s no need to reboot and no need to warmup – it’s as easy as it gets.ABOUT THE SENSORS
The infrared CO2 sensor utilizes NDIR technology for maximum stability and has a theoretically unlimited lifespan. Its ultra-low power consumption allows for 10-14 hours of runtime for the analyzer before recharging is required. It has no moving parts, no consumables, and is housed in a compact optical cell. The sensor responds to CO2 only. The electrochemical O2 sensor life is typically 4-5 years, unlike other analyzers with an electrochemical sensor that last 1-2 years. When required, replacement is easy and inexpensive. Both sensors are unaffected by high levels of background gases such as nitrogen.WARRANTY STATEMENT
The Model Q22 is backed up with a two-year warranty, twice the industry standard. Our service team responds quickly to the repair needs of our customers, and repairs and calibrations are conducted in our advanced facility in Massachusetts.| Weight | 2.8 kg |
|---|---|
| Dimensions | 35.6 × 30.5 × 25.4 cm |
| Carbon Dioxide Sensor Type | Solid-state Infrared |
| CO2 Minimum Detection Limit | 0.1% (0-50% or 0-100% range) or 0.01% (0-10% or 0-20% range) |
| Accuracy - Carbon Dioxide | ± 1% of reading, or ± 0.1% CO2 (whichever is greater) |
| CO2 Calibration Controls | Digital Keypad |
| CO2 Calibration Frequency | Every 12 months; calibration gas recommended. |
| Oxygen Range | 0.00 to 100% |
| Oxygen Sensitivity | 0.01% |
| O2 Resolution | 0.01% |
| Expected Lifetime (oxygen) | 4-5 years |
| Analog Output | 0-5V |
| Resolution | 0.01% |
| Accuracy | +/- 0.1% (from 0-20%), +/- 0.2% (from 20% to 50%), +/- 0.5% (from 50% to 100%) |
| Drift | less than 0.4% per year |
| Oxygen Sensor Type | Proprietary Electochemical |
| Response Time | 20 seconds to T95 |
| O2 Sensor Lifetime | 4-5 Years |
| O2 Sensor Body | Anodized aluminum (CO2) and ABS Resin (O2) |
| Sample Connection | Sample Probe |
| Sample Method | Pump |
| Sample Pump | Internal, draws ~5cc/sec |
| Pump Timing | 2-20 seconds, continuous, or cycling on/off, programmable |
| Minimum Sample Required | 15cc |
| Sampling Assembly | Probe with luer connection for tri-beveled needle, PTFE tubing |
| Oxygen Calibration Controls | Digital Keypad Adjustment |
| Instrument Calibration | EasyCal calibration |
| Exhaust port | Vents to air |
| Power Supply | 100 to 240 VAC, internationally compatibile |
| Battery Operation | Included, internal shrink wrapped NiMH battery pack |
| Input Voltage | 100-240V, 50-60Hz |
| Battery Life | 12-16 hour runtime |
| Measures: O2, CO2 | O2, CO2 |
| Form Factor | Benchtop |
| Size | 11W x 3H x 8D in (279W x 76H x 203D mm) |
| Weight | 3.5 lbs (1.59 kg) |
| Warranty | 2 years, parts and labor |
| Standards | CE, RoHS |
| Included Consumables | 400 foam septas, 10 luer fit needles, 10 filters, spare probe tubing |
| Included Documentation | Owner’s manual, NIST traceable calibration certificate |
| Origin of Goods | Our goods are manufactured in the U.S.A. |
